Ammonium Perchlorate from Sodium Perchlorate and Ammonium Chloride

The following assumes that ALL traces of Chlorate have been destroyed before conversion of the Sodium Perchlorate into Ammonium Perchlorate. If there are traces of Sodium Chlorate present, Ammonium Chlorate will form, and this will give a dangerous unstable product. See Destroying Chlorate by chemical means for to eliminate all Chlorate.

Molecular weights
NH4ClO4 NaCl NH4Cl NaClO4
117.5 58.5 53.5 122.5

Method 1

You can scale the following up or down:
Looking at the mutual solubility diagram below we see that since NH4ClO4 is the least soluble of all the possible products at low temperature it will precipitate/crystallise first. However, if your solutions are too concentrated NaCl will also precipitate, contaminating your product. So, aim to have about 33g of NaCl per 100g of water at the end of your conversion as this is just below the saturation point of NaCl (see graph).

Now, 33g of NaCl is 33g/58.5g = 0.564 moles of NaCl.
You need 0.564 moles of NaClO4 per 100ml water, that's 0.564 * 122.5g = 69.1g NaClO4
The amount of ammonium chloride required is 0.564 moles, which is 0.564 * 53.5g = 30.17g NH4Cl
This will produce 0.564 moles of NH4ClO4 which is 0.564 * 117.5g = 66.27g NH4ClO4

Now, in order to get everything to dissolve you need to have the temperature at 90 degrees or slightly higher. If you go too hot you lose a lot of water due to evaporation. You should dissolve the NaClO4 first in a minimum of water @ about 90 degrees. Then dissolve the ammonium chloride in the rest of the water but this requires a lot of heating because ammonium chloride absorbs a lot of heat when it dissolves.
Then simply add the solutions, mix and cool ever so slowly to -10 degrees or so over a period of about 24 hours. You can wrap the container is insulation and leave it to cool down to room temperature (in a warm place if possible). Then put into freezer, still wrapped, and cool further. Don't let ice form. The slow cooling will produce big crystals of ammomium perchlorate which are easily washed with cold water with minimum loss of ammonium perchlorate.
The total amount of ammonium perchlorate produced is 0.564 moles which is 0.564 * 117.5g = 66.27g. Not all of this will come out of solution but you should get about 50 grams.

How the Pro's do it

The graph below shows the mutual solubilitys of the the relevent salts. The system is suited to fractional crystallization. Starting at point A the mother liquor is cooled, resulting in the crystallization of some Ammonium Perchlorate. The composition of the mother liquor is now represented by point B. Some liquid is now evaporated off (flashed off, as it is called) to a composition C. The evaporation is done in a vacumm. The temperature of the mother liquor will drop and some Sodium Chloride, the amount being represented by the length of line segment C-D, will ppt out of solution so that the point D is reached. Some water is now added so that the starting concentrations are reached again, point A. Some more reactants are added (Sodium Perchlorate + Ammonium Chloride) and the cycle is repeated.
This process is continued repeatedly so that crystals of the proper shape, size and size distribution are obtained.
From: Chemical Engineering Progress (Vol. 57, No. 11, page 138 (Nov. 1961))

[MUTUAL SOLUBILITY OF AMMONIUM PERCHLORATE AND SODIUM CHLORIDE]


Method 2

See US Patent No. 1,453,984 which is available here.

Having read the patent it is simply a matter of using a weighing scale to keep track of your solutions so that you will know what percentage solution you are dealing with.


The graph below shows the solubilitys of the relevent salts in both methods above. Ammonium Perchlorate and Sodium Chloride form what is called the 'stable pair', ie. they are the most two likely salts to ppt out of solution. This graph is not a mutual solubility graph.

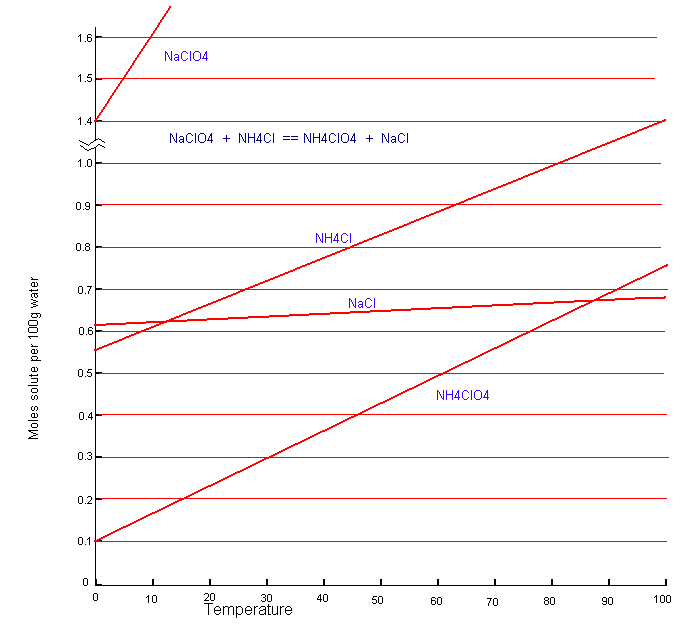

[SOLUBILITYS OF RELEVENT SALTS IN MOLES PER 100Ml WATER]
